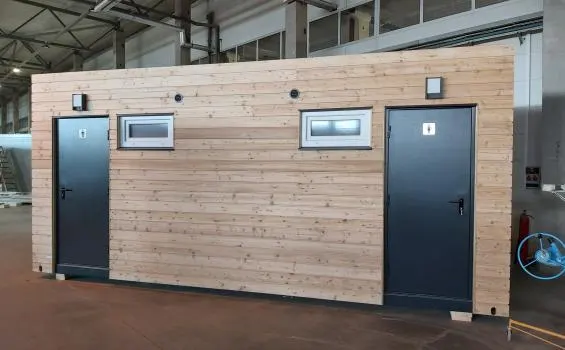

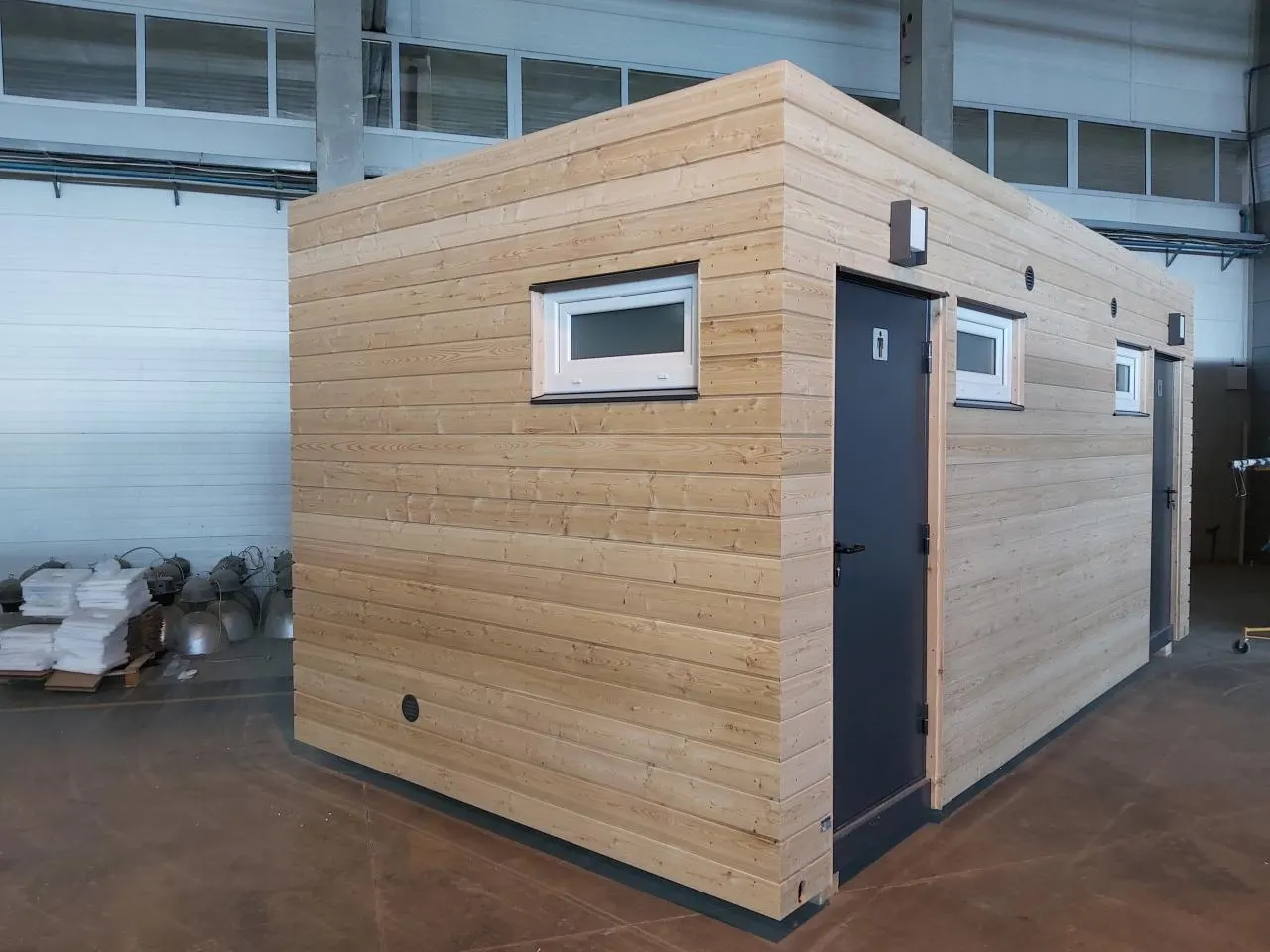

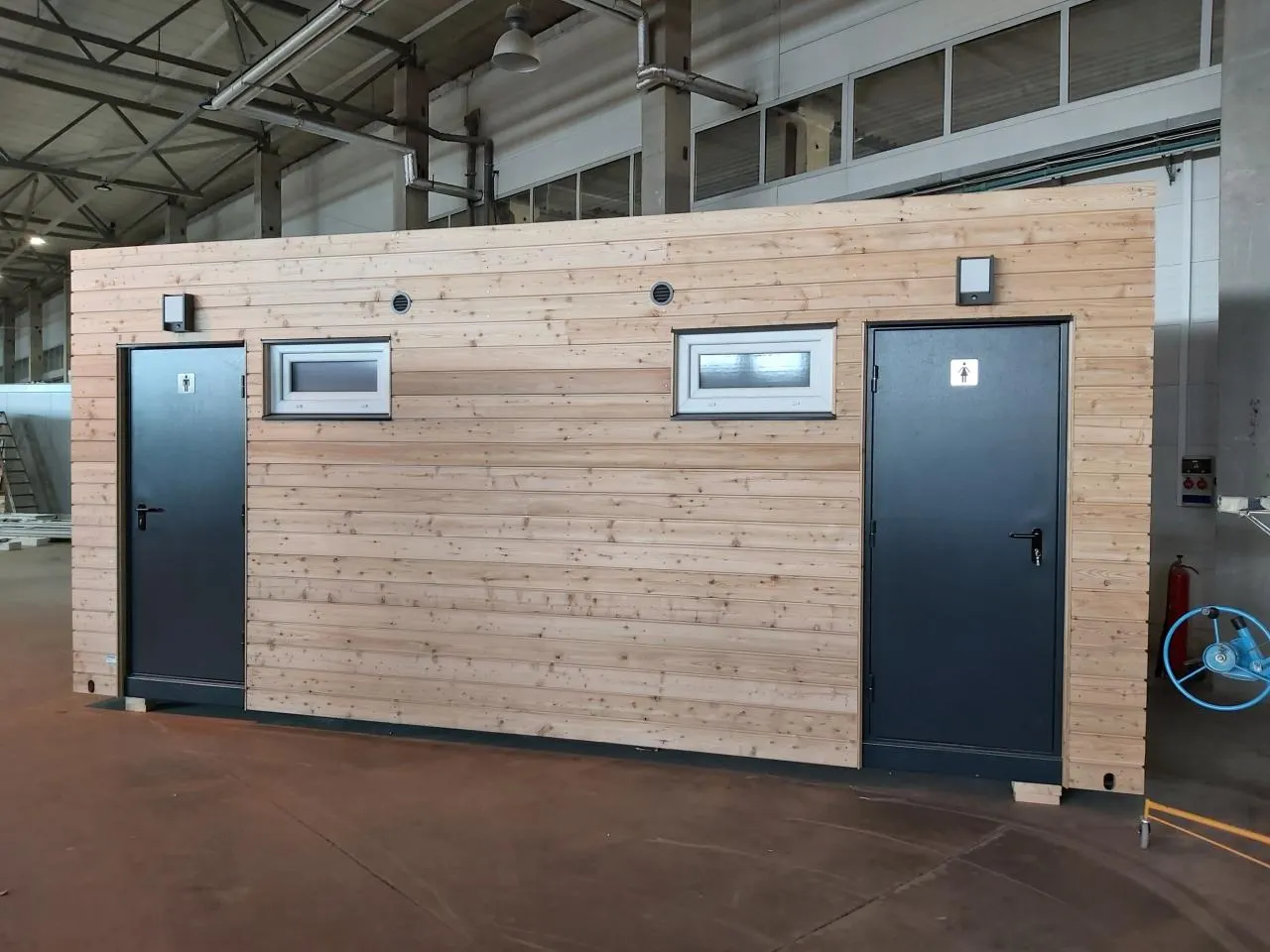

1. 20 ft sanitary container gents/ladies
Specification
Frame construction: fully welded steel frame, primed, PU painted RAL 9006, double coated. With drainpipes in the posts.

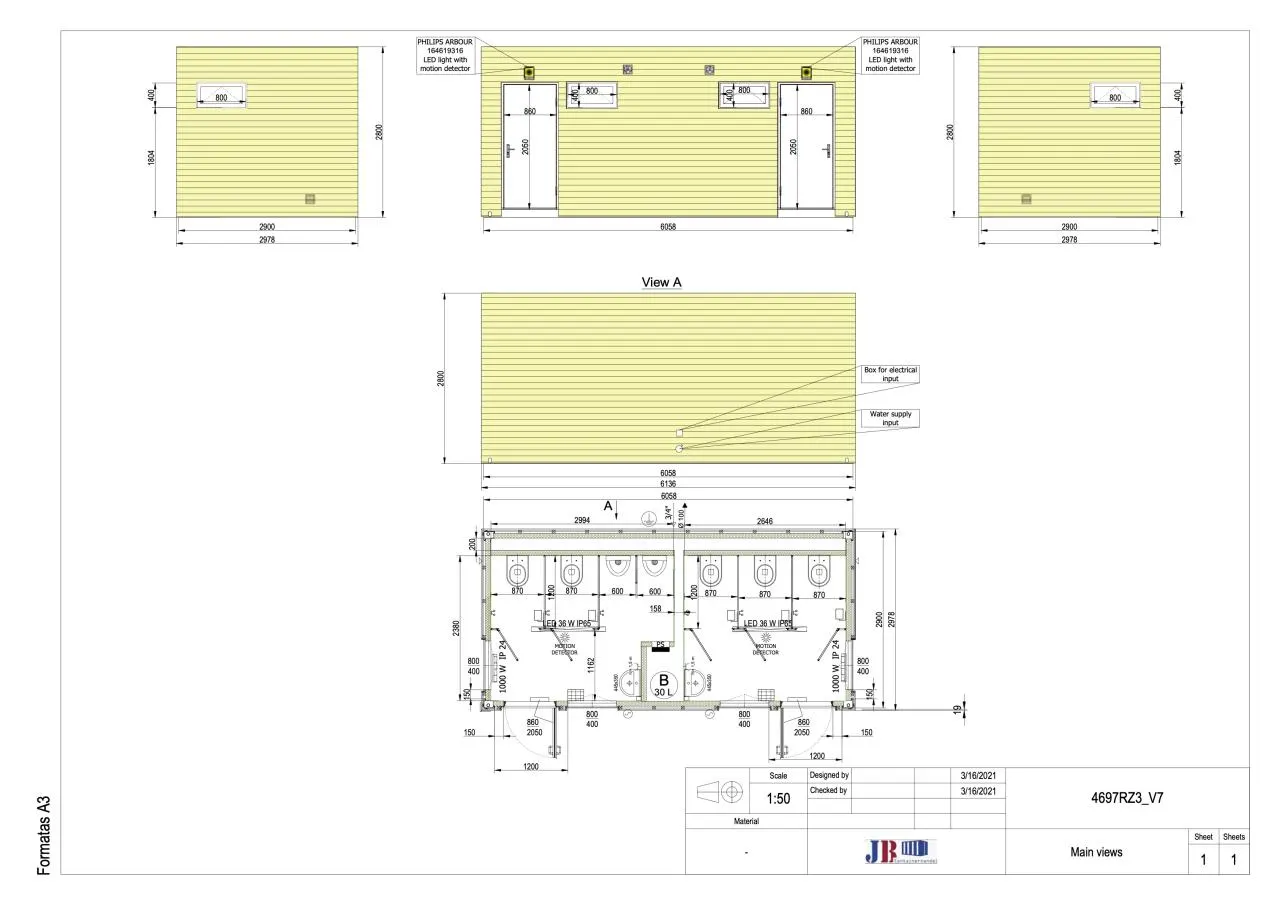

External dimensions: 6058x3000x2800 mm (LxWxH)
Internal room height: 2500 mm
Forklift pocket spacing: none, crane unloading only
Exterior finish: sandwich panels RAL9006 + larch cladding. (Painted timber as an alternative would be cheaper)
Interior finish: white (trapezoidal sheet) + waterproof Fibotrespo board with a tile look
Insulation: floor MW 100 / wall 80 PIR / roof MW 100
Electrics: incl. recessed CEE / VDE standard (400V/32A/5-pole), all cables concealed (or in conduit).
Floor construction: cement-bonded particle board / homogeneous PVC covering, dark grey, marbled.
Floor load: 350 kg/sqm

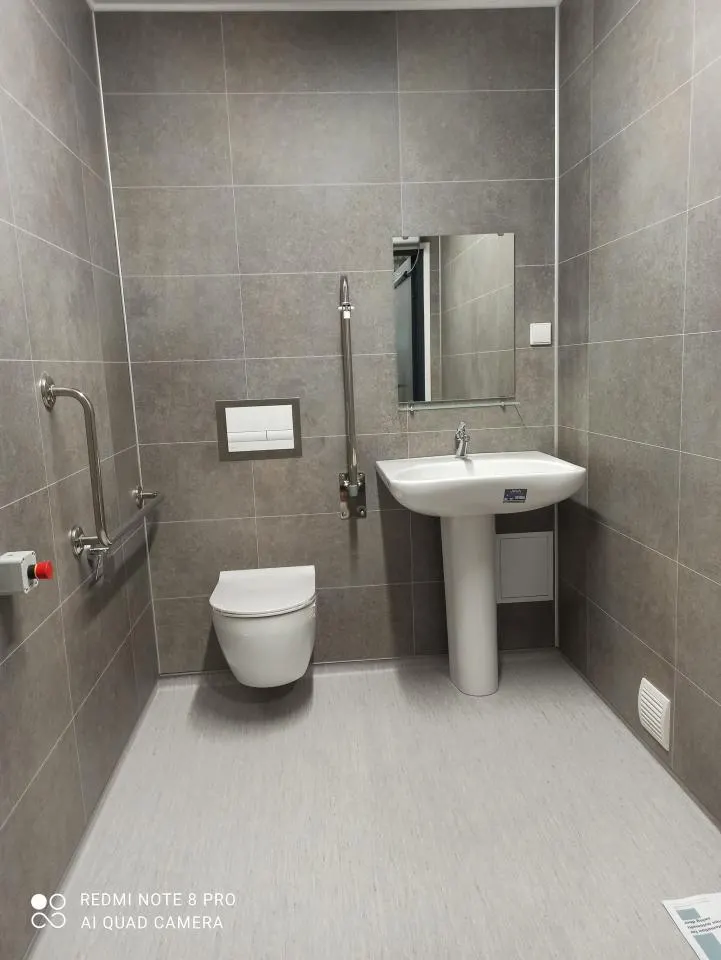

Gents sanitary fittings
1 x external steel door 875×2000 mm + door closer, RAL7016 (anthracite)
2 x sanitary windows 400×800 mm, window frames white
1 x LED light bar with white cover 36W, sensor.
2 x WC cubicles
2 x wall-hung ceramic WC, cistern integrated in the wall.
1 x ceramic washbasin with wall mirror.
2 x ceramic urinal
1 x electric convector 2 kW
1 x water heater 10 L
1 x fan, switched with light
Sockets/switches are included in the price.
1 x pressure reducer incl. filter

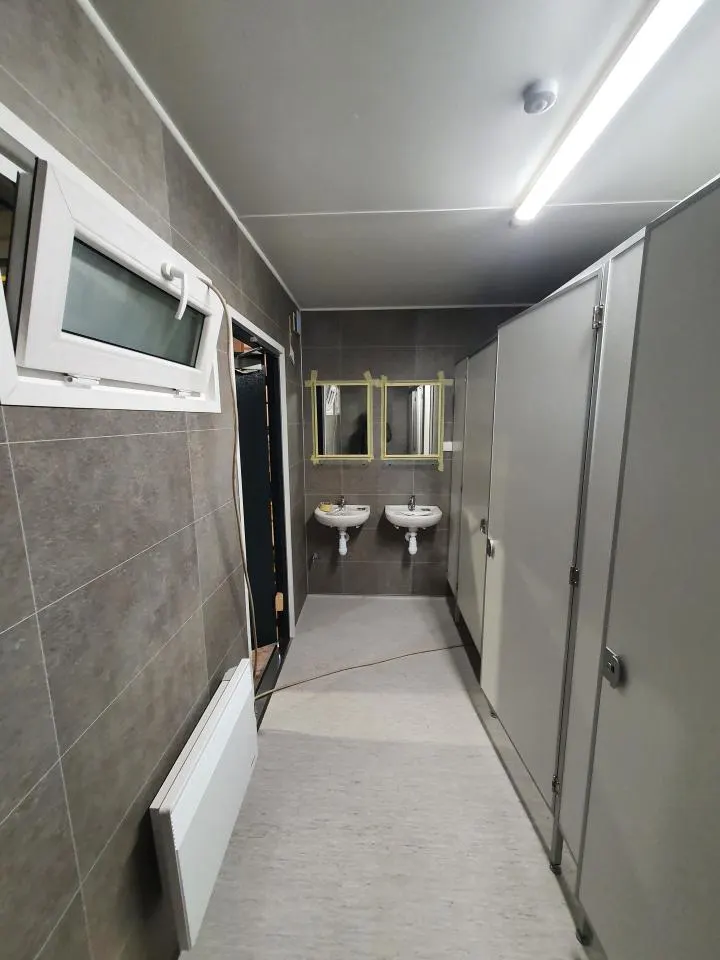

Ladies sanitary fittings
1 x external steel door 875×2000 mm + door closer, RAL7016 (anthracite)
2 x sanitary windows 400×800, window frames white
1 x LED light bar with white cover 36W
3 x WC cubicles
3 x wall-hung ceramic WC, cistern integrated in the wall.
1 x ceramic washbasin with wall mirror.
1 x electric convector 2 kW
1 x water/waste water connections through wall or floor
1 x water heater 10 L
1 x fan, switched with light
2 x LED lights approx. 10 W with sensor above the door
Floor drain in each room
Toilet roll holders, soap dispensers, coat hooks included in the price
All PVC pipes concealed, with access door for servicing
