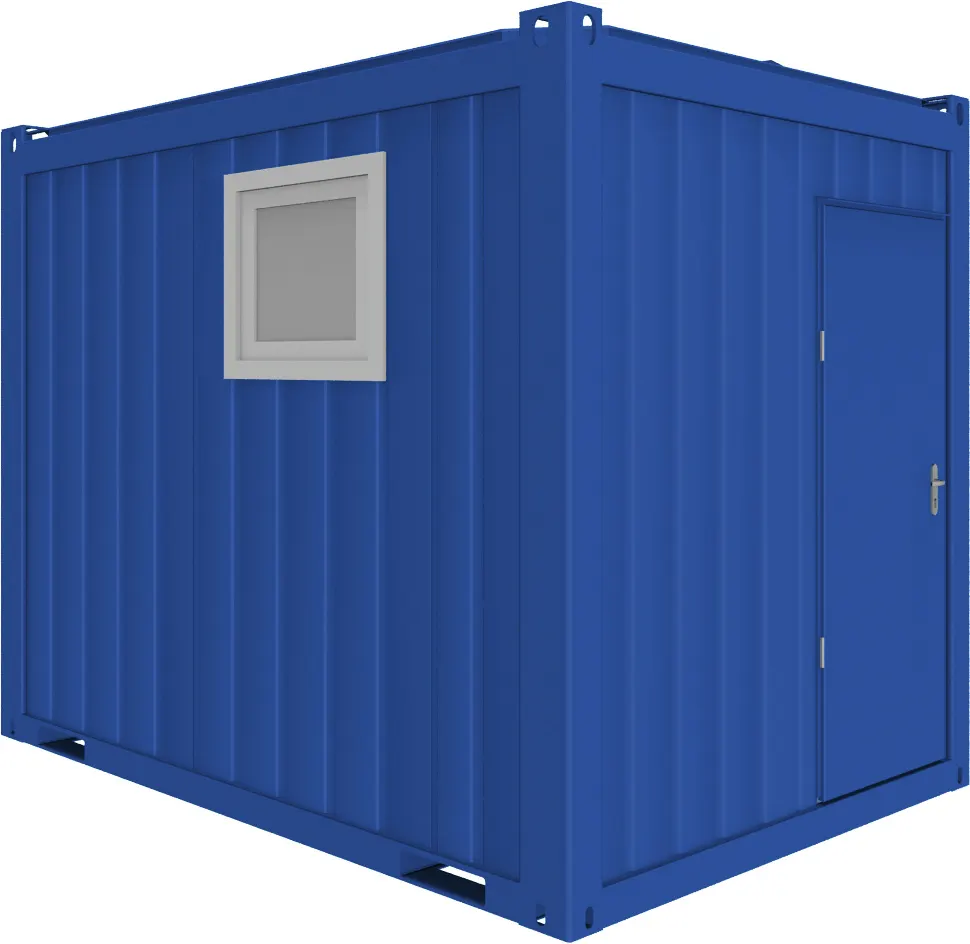

Shower/WC container
TYPE Classic
10’ STANDARD
SANITARY CONTAINER PU / NEW (used not available)
Basic equipment
Paint finish: RAL 5010 gentian blue Internal room height: 2,340 mm or 2,540 mm
External height: Interior finish: Electrics:
Insulation: Fittings:
2,591 mm or 2,800 mm
RAL 9010 pure white (coated sheet steel)
VDE (400V/32A/5-pole) – German standard
* CEE external sockets recessed in the roof frame, position as per sketch
Panels: 60 mm PU foam (polyurethane) Floor/roof: 60/100 mm mineral wool
1 external steel door(s) 875 x 2125 mm – opening outwards 2 PVC sanitary windows with frosted glass, tilt fitting
1 WC cubicle(s) complete
1 urinal with push-button flush
1 GRP wash trough 1200 mm with 2 hand basins 1 GRP shower(s) with curtain
1 wall-mounted water heater 80 l, make Stiebel Eltron
1 fan heater 500W, make Stiebel Eltron
1 fan heater 2kW, make Stiebel Eltron 2 light bars 1×36 W
1 extractor fan(s) 120 mm, 180 m3/h 2 floor drain(s)
1 pressure reducing valve

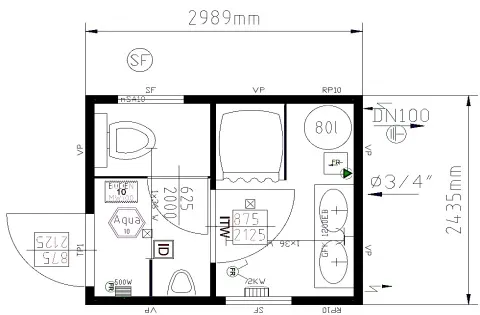

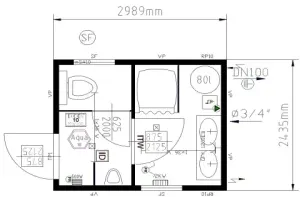

Supply and drain recessed in the panel, position and dimensions as per sketch
– cement-bonded particle board flooring
– PVC floor covering R10 turned up at the panels – forklift pocket spacing: 2,055 mm (standard)
